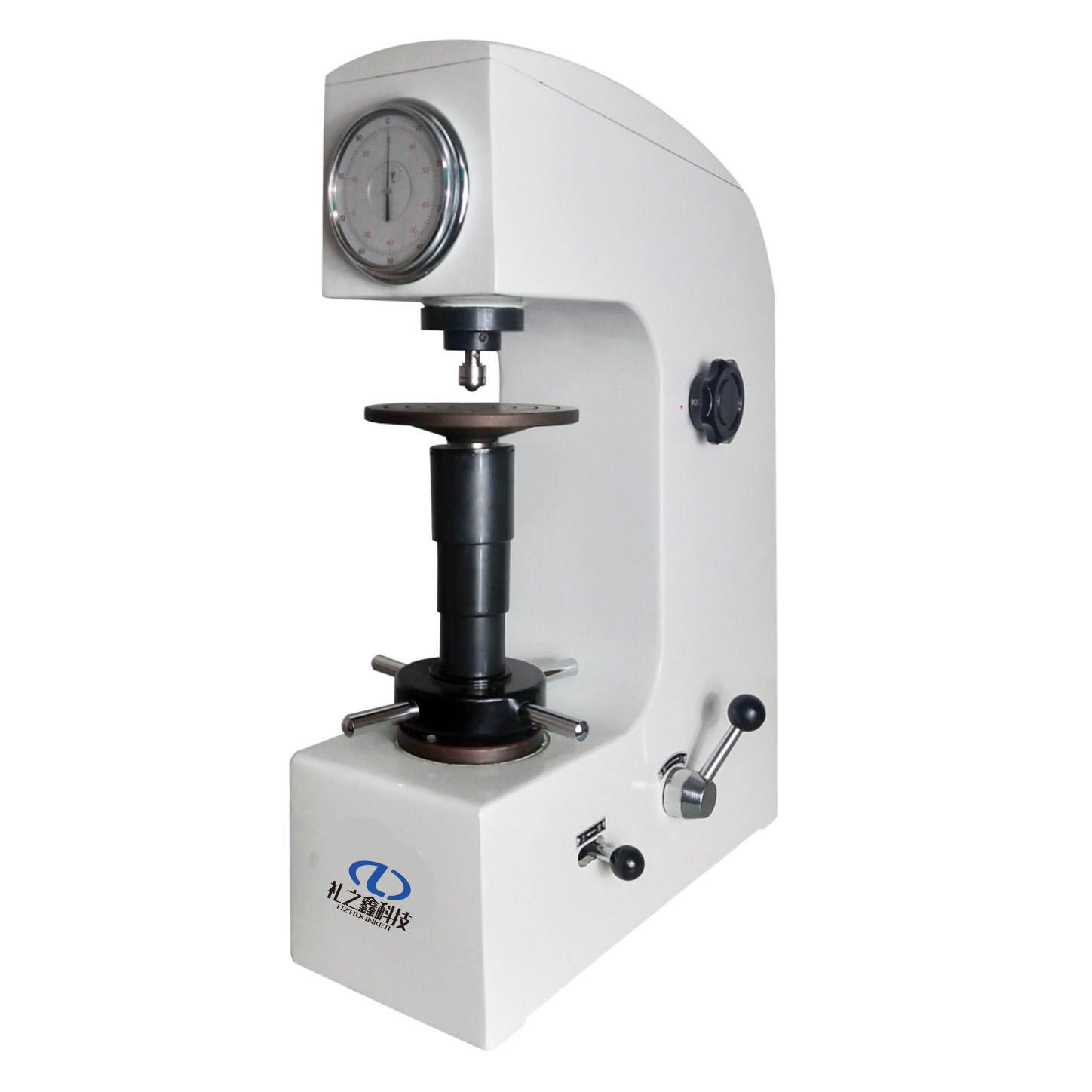

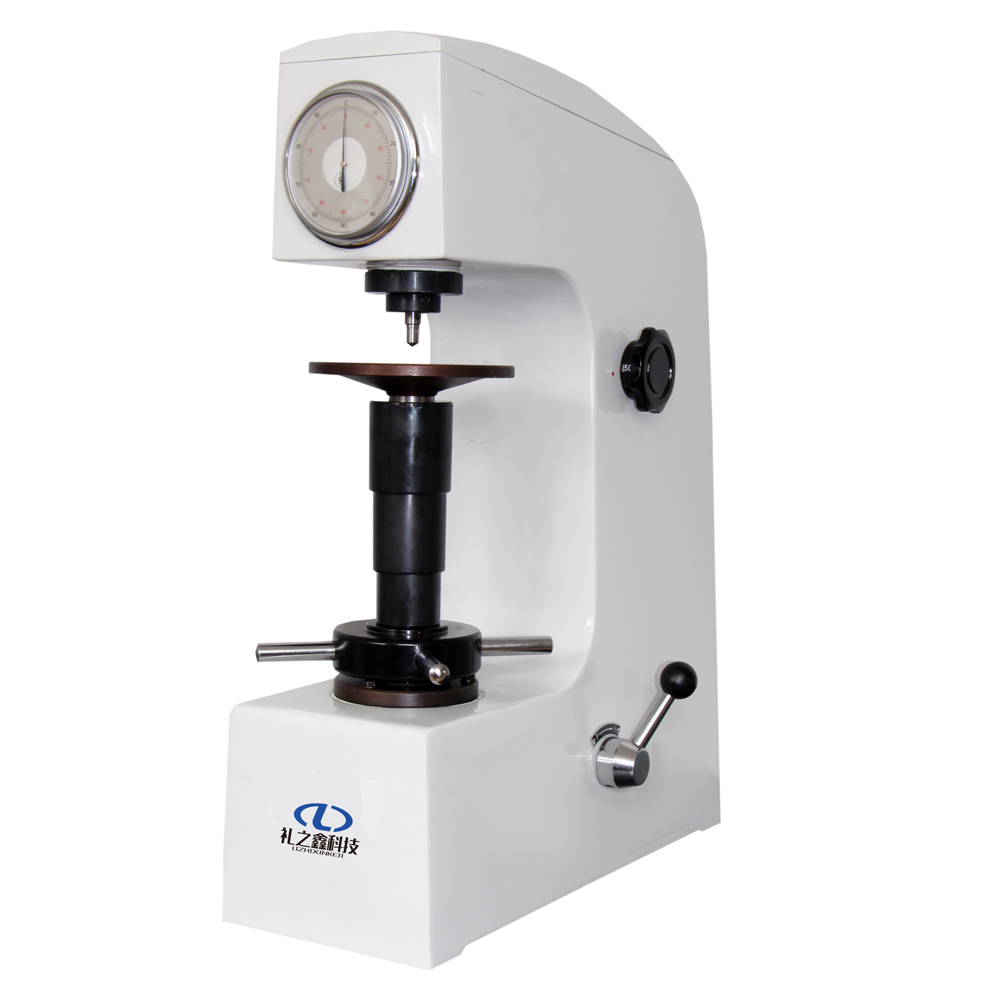

LZX-150手动洛氏硬度计
LZX-150手动洛氏硬度计

LZX-150系列手动洛氏硬度计







产品介绍:

1. LZX-150洛氏硬度计, 采用机械式手动测试,无需电源,适用范围广,操作简便,具有良好的经济性和实用性;

2.机身使用优质铸铁一次浇铸成型,配合以汽车烤漆处理工艺,外形圆润美观

3.表盘直接读取硬度值,并可选配洛氏的其它标尺HRD、HRF等硬度标尺;

4.采用了无摩擦主轴,试验力精度高;

5.采用了一体铸造的精密液压缓冲器,无缓冲液泄漏,且加卸荷平稳、无冲击速度可调

6.精度符合GB/T230.2-2018ISO6508-2和美国ASTM E18标准。



Product Features:

 1.LZX-150  Rockwell hardness testers adopt mechanical manual test, without power supply, wide application range, easy operation, good economy and practicality;The machine body is integral casting by high quality cast iron, with the automotive paint treatment process,

2.the appearance is round and beautiful;

3.Read the hardness values directly from the dial, and it can be matched with other scales of Rockwell, such as: HRD, HRF etc...;

4.Adopt the Friction-Free spindle, high test accuracy;

5.Adopt the precision hydraulic buffer with integral casting, no buffer leakage, and the;

loading is smooth, no impact, and the speed is adjustable


6.The accuracy is in line with GB/T230.2-2018, ISO6508-2 and American ASTM E18 standard.



Main Parameters:

型号

Model



 LZX-150

测量范围

Range of Measurement

20-95HRA,

10-100HRBW,

20-70HRC;

试验力

Test Force



588.4、980.7、1471N(60、100、150kgf)

试件允许高度 Available Maximum Height of Specimen

170mm

 压头中心到机壁距离Beeline between Indenter Center and Wall

135mm

硬度分辨率

Hardness Resolution

0.5HR

外形尺寸

Outline Dimension

466*238*630mm

重量

Weight

65kg
