产品介绍:

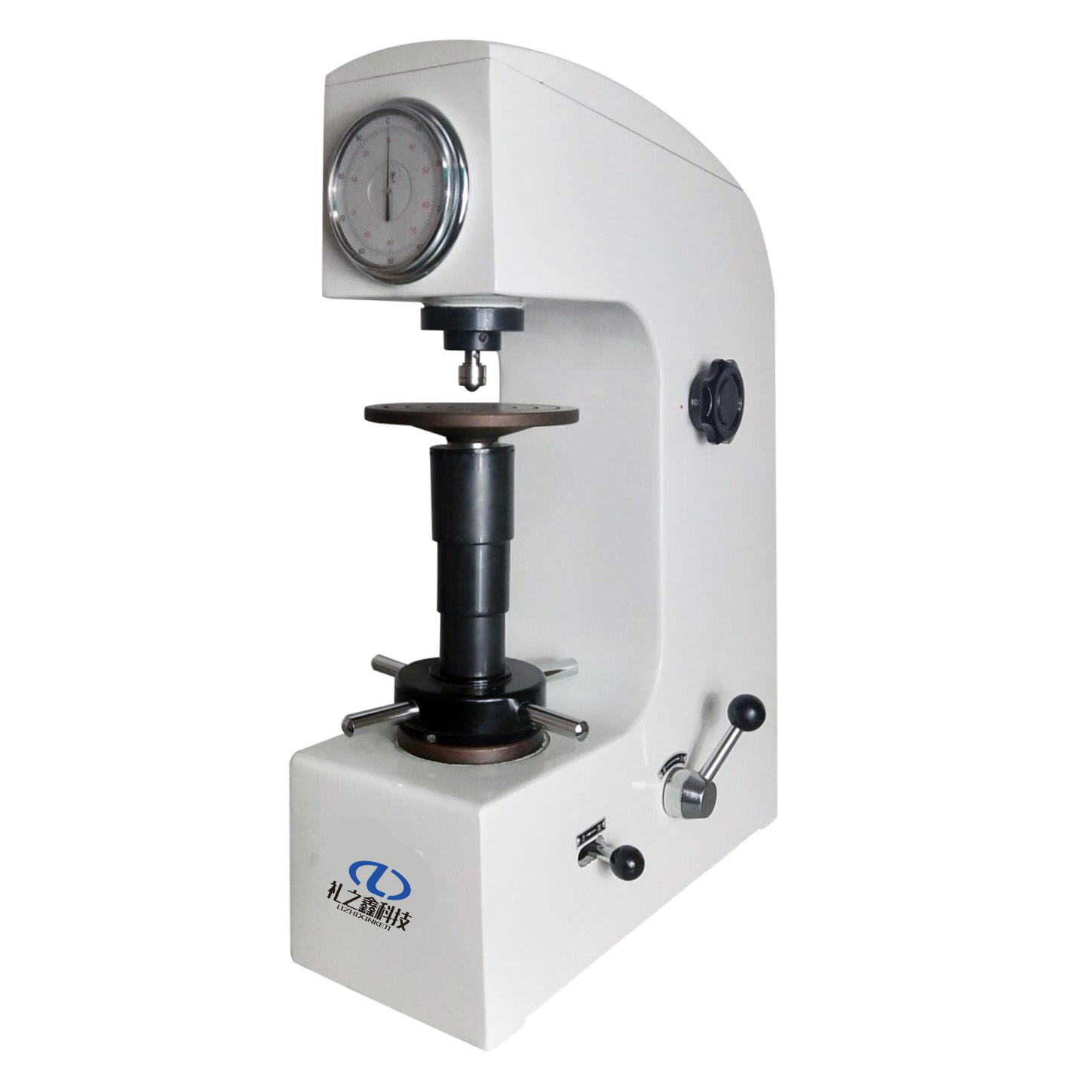

1.LZX-150塑料手动洛氏硬度计, 采用机械式手动测试,无需电源,适用范围广,操作简便,具有良好的经济性和实用性;
2.机身使用优质铸铁一次浇铸成型,配合以汽车烤漆处理工艺,外形圆润美观;
3.表盘直接读取硬度值,并可选配洛氏的其它标尺;
4.采用了无摩擦主轴,试验力精度高;
5.采用了一体铸造的精密液压缓冲器,无缓冲液泄漏,且加卸荷平稳、无冲击、速度可调;
6.精度符合GB/T230.2-2018、ISO6508-2和美国ASTM E18标准。
Product Features:
1.LZX-150ockwell hardness testers adopt mechanical manual test, without power supply, wide application range, easy operation, good economy and practicality;
2.he machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful;
3.ead the hardness values directly from the dial, and it can be matched with other scales of Rockwell, such as: HRD, HRF etc...;
4.Adopt the Friction-Free spindle, high test accuracy;
5.Adopt the precision hydraulic buffer with integral casting, no buffer leakage, and the;
6.loading is smooth, no impact, and the speed is adjustable;
The accuracy is in line with GB/T230.2-2018, ISO6508-2 and American ASTM E18 standard. |
Main Parameters:
型号 Model |
LZX-150 |
测量范围 Range of Measurement |
70-100HREW,50-115HRLW; 50-115HRMW,50-115HRRW; |
试验力 Test Force |
588.4、980.7、1471N (60、100、150kgf) |
试件允许高度 sable Maximum Height of Specimen |
170mm |
压头中心到机壁距离Beeline between Indenter Center and Wall |
135mm |
硬度分辨率 Hardness Resolution |
0.5HR |
外形尺寸 Outline Dimension |
466*238*630mm |
重量 Weight |
65kg |
