产品介绍：

● HRS-150T采用8寸触摸屏和高速ARM处理器，显示直观，人机互动友好，操作简便；运算速度快，数据库广量存储，数据自动修正，并提供数据折线报表；

● 机身部分使用机身使用优质铸铁一次浇铸成型，配合以汽车烤漆处理工艺，外形圆润美观；

● 带有温度测量功能，数字化测温电路，长期工作，稳定可靠；

● 具有圆柱面和球面自动修正功能，并有相应提示；

● 可设置硬度值，当测试值超过设定范围时，发出报警音；

● 具有软件硬度值修正功能，可以在一定范围内直接对硬度值进行修正；

● 具有数据库功能，对试验数据自动进行分组保存，每组可保存10个数据，可以保存2000个以上数据；

● 具有硬度值曲线显示功能，直观显示硬度值的变化；

● 数据库可自动记录标尺、试验力、硬度值、温度等参数；

● 每组的试验点数量，可在1到10点范围内自由设定；

●系统对每组的硬度值自动计算；

● 便捷控制系统，可自动进行全硬度标尺的单位转换；

● 配置无线蓝牙打印机，并可通过RS232、USB接口端口输出数据；

● 具有独立的小型照明灯，在光线不良时方便用户操作；

● 精度符合GB/T230.2-2018、ISO6508-2和美国ASTM E18标准。

Product Features:

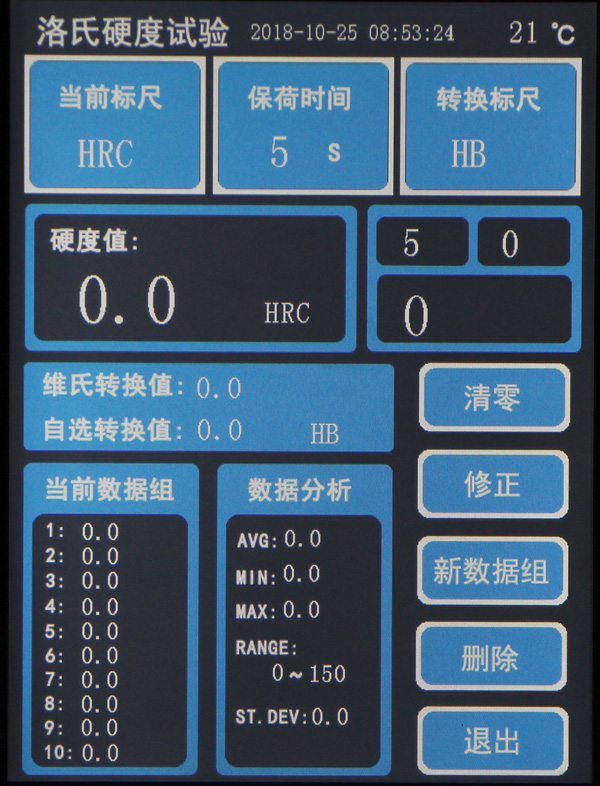

● HRS-150T Touch-Screen digital Rockwell hardness tester adopt 8 -inch touch screen and high-speed ARM processor, Visual display, friendly man-machine interaction, easy operation, Fast operation speed, extensive database storage, data automatic correction, and provide data broken line report；

● The machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful；

● With the temperature measurement function, digital temperature measurement circuit, long-term work, stable and reliable；

●  It has the function of automatic correction of cylindrical surface and spherical surface, with the corresponding tips；

● The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued；

● With the function of software hardness value correction, the hardness value can be directly corrected within a certain range；

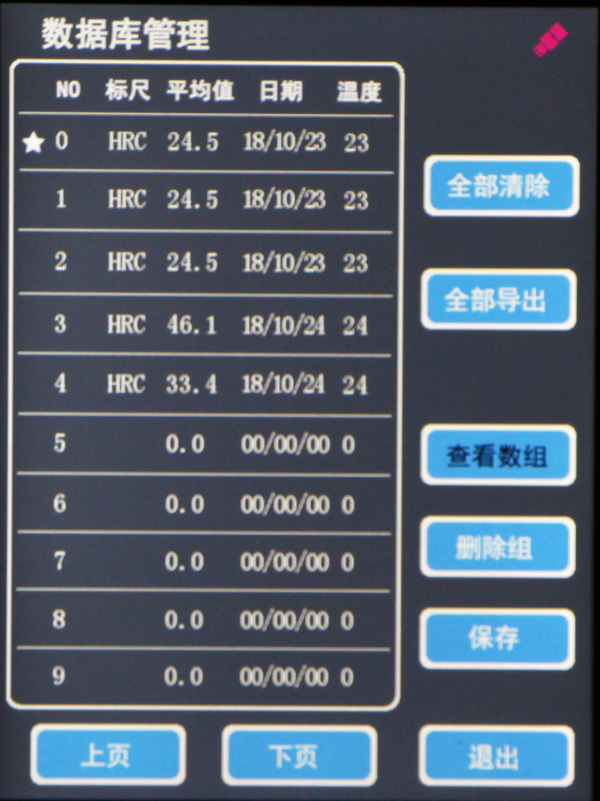

● With the database function, the test data can be saved automatically in groups, each group can save 10 data, total can save more than 2000 data;

● With the hardness value curve display function, intuitive display the changes of hardness value;

● The database can automatically record the scale, test force, hardness values, temperature and other parameters；

● The number of test points for each group can be freely set within the range of 1 to 10 points;

● The system automatically calculates the maximum, minimum and average hardness values of each group；

● Convenient control system can automatically convert the unit of full hardness scale；

● Equipped with wireless blue-tooth printer, the data can be output through RS232 and USB interface port；

● Equipped with the independent small floodlight, convenient for user operation in the bad light；

● Accuracy is in line with GB/T230.2, ISO6508-2 and American ASTM E18 standard.

主要参数：

Main Parameters：
