产品介绍

● HBMS-3000C数显门式电子布氏硬度计采用先进的设计理念，机电诸方面均采用当今硬度计领域先进技术，检测结果准确，示值重复性强，自动化程度高,是当今国内先进的布氏硬度计之一，广泛应用于石油机械、铁路器材、汽车轮毂、飞机制造、矿山机械、特殊钢等行业；

●  机身及工作台采用精密铸造工艺，构造坚固、刚性好、可靠、耐用；

●  门式机架，大型可移动工作台，移动距离1000mm;

●  配备布氏CCD图像自动测量系统，图像处理模块可对压痕进行封闭式抓拍，自动显示布氏硬度值并完成硬度单位换算，保存测试数据组并自动生成硬度测试报告及报表。测试数据保存于离线数据库中；

●  测试机构采用高精度轮辐式压力传感器；加载装置内置精密压力传感器，试验力值稳定可靠，并具备试验力自动补偿功能；

●  采用自主研发的数显门式电子布氏硬度计专用数控系统，运行速度快，全闭环式由快到慢梯度施加试验力，确保了试验力施加平稳无冲击；

●  采用当代先进高速微处理器，瞬间响应快，保证试验力精度稳定在±1%以内；

●  步进电机，高精度滚珠丝杠及直线导轨；定位准确，维护简便；

●  试验力、加载饱和时间、进给速度、测试速度可人为调整控制；

●  自动化测量，消除人为操作干扰与读数误差；

● 精度符合GB/T231.2-2018，ISO 6506-2和美国ASTM E10。

Product Features:

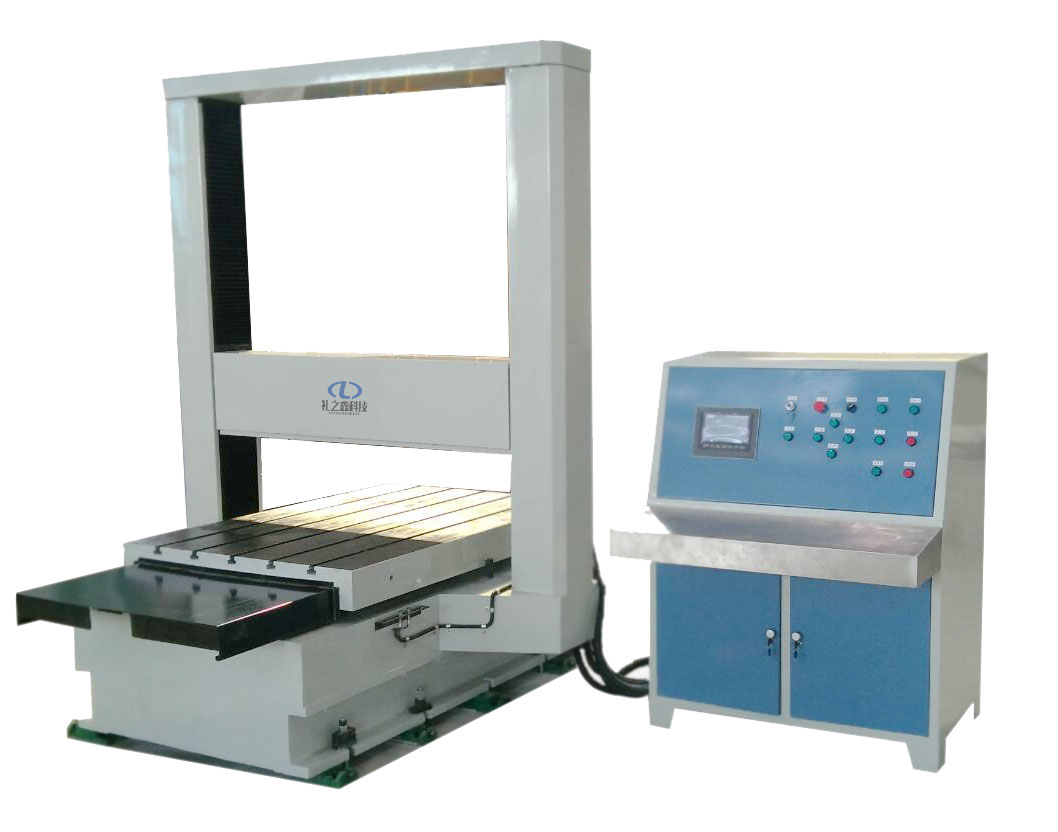

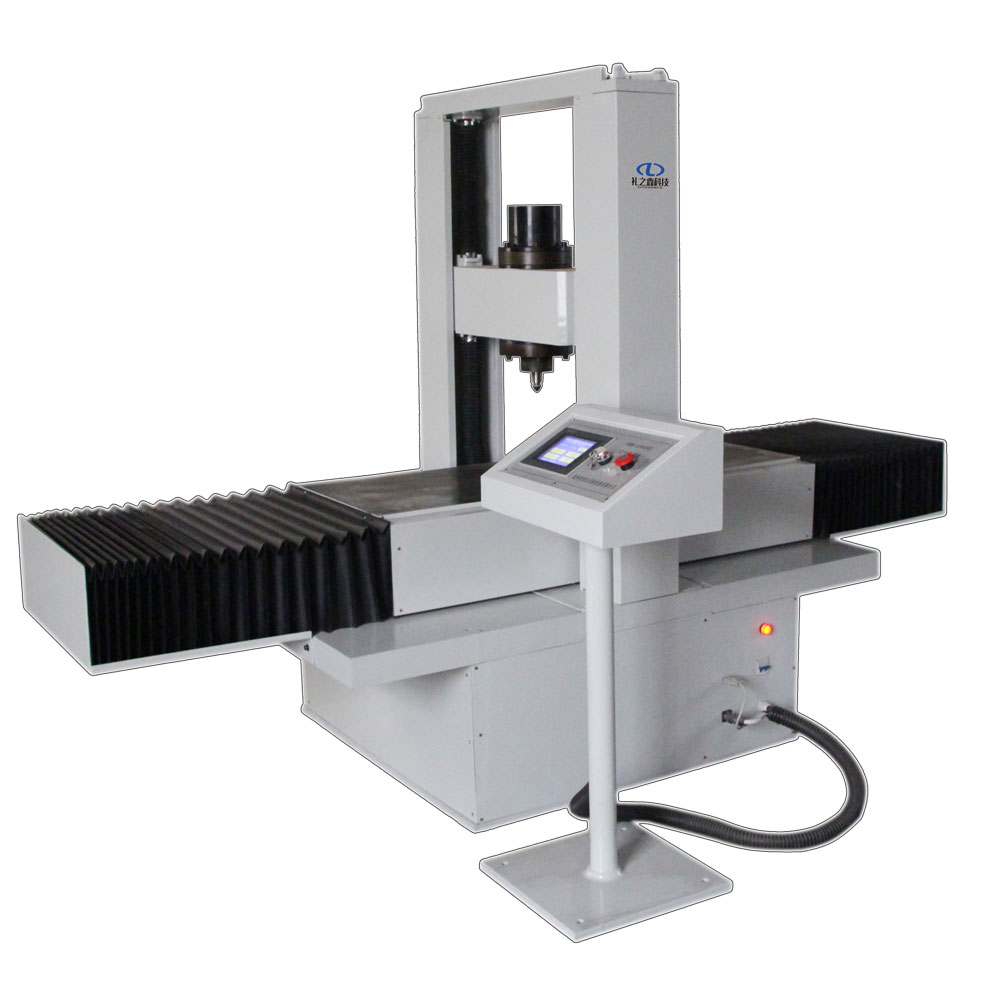

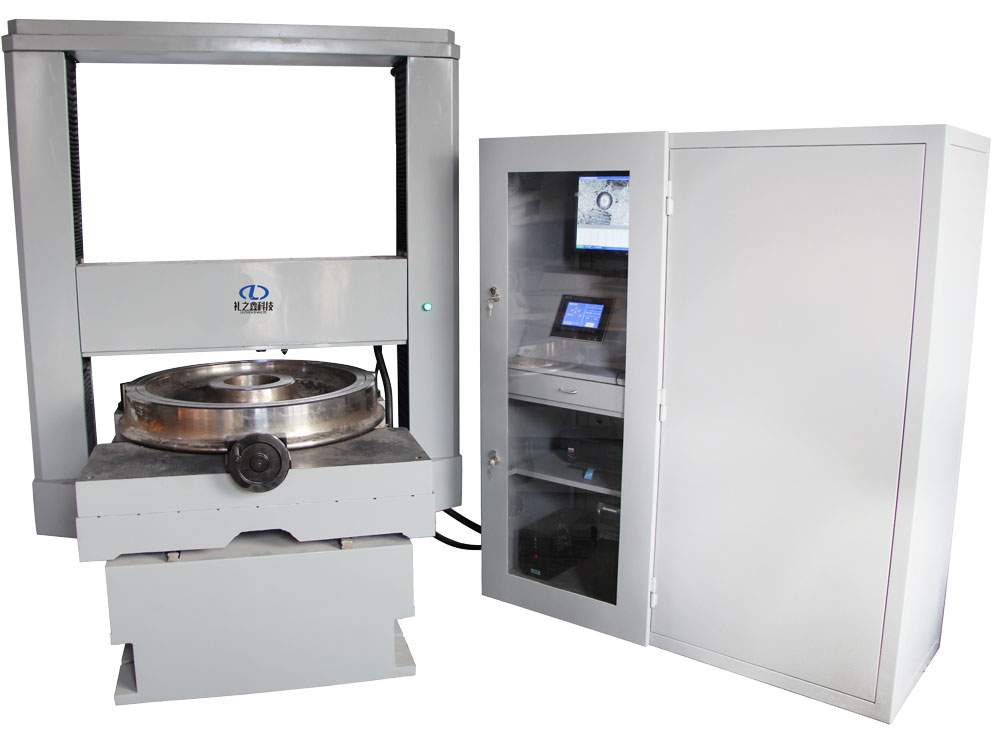

● HBMS-3000C digital Gantry-Mode electric Brinell hardness tester with advanced design concept,

mechanical and electrical aspects are used advanced technology in the field of hardness tester, accurate test results,  strong repeatability indicating value and high degree of automation., is one of the most advanced Brinell hardness tester in China, widely used in petroleum machinery, railway equipment, automobile hub, aircraft manufacturing, mining machinery, special steel and other  industries；

● The machine body and worktable adopt precision casting technology, which is firm, rigid, accurate and durable；

● Gantry-Mode frame, large movable table, maximum movement distance 1000mm;

● Equipped with Brinell CCD image automatic measurement system, the image processing module can take the closed snapshot of indentation, automatically display the Brinell hardness value and complete hardness unit conversion,save the test data group and automatically generate hardness test report and statement.The test data is stored in an offline database；

● Adopt the Self-Developed gate-type electronic Brinell hardness tester special numerical control system, fast running speed, full closed loop from fast to slow gradient applied test force, ensure the test force exerted smooth and no impact;

● Adopt the modern advanced high speed microprocessor, the instantaneous response is fast, ensure the test force accuracy is stable within ±1%;

● Stepper motor, high precision ball screw and linear guide, accurate positioning and easy maintenance；

●Testing force, loading saturation time, feed speed and testing speed can be adjusted manually

●The test process is automated without operation error；

● Automatic test, Eliminate manual operation interference and reading error;
●Accuracy is in line with GB/T231.2, ISO 65

主要技术参数:

Main Parameters:

配置明细

Configuration List
