产品介绍：

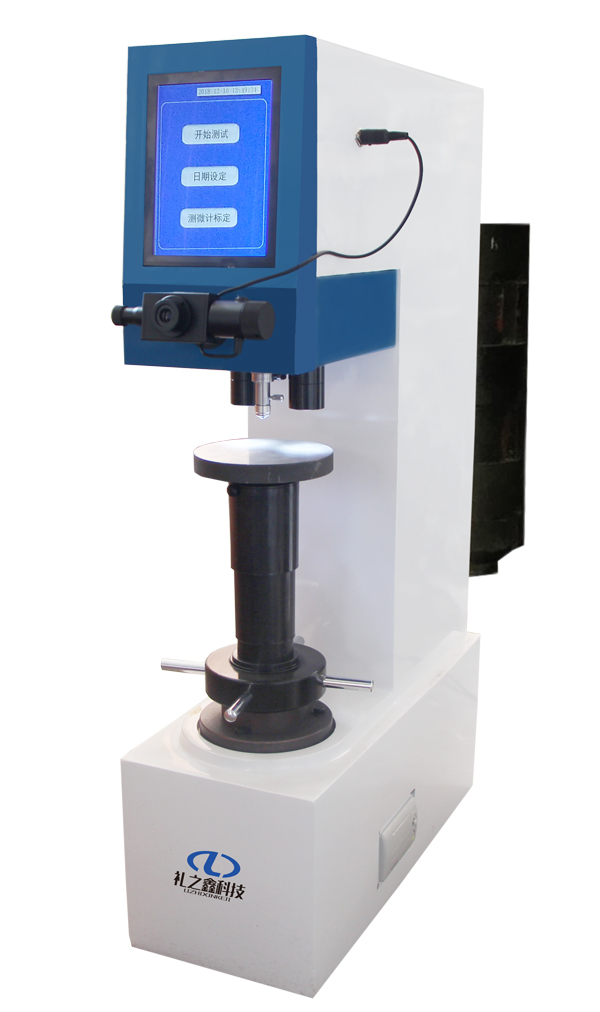

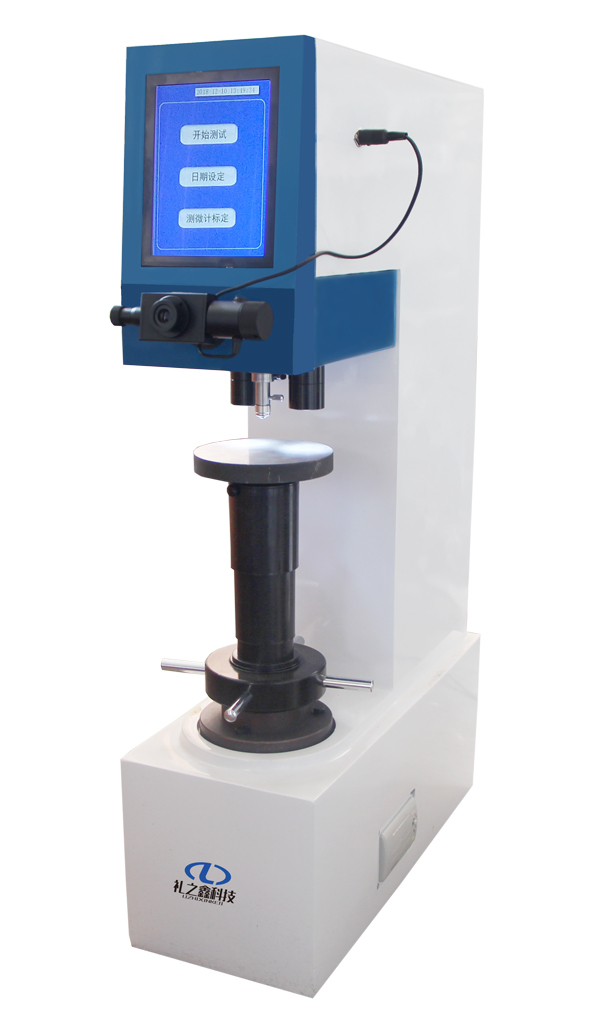

1.HBS-3000AT,HBS-3000AET触摸屏数显布氏硬度计，采用8寸触摸屏和高速ARM处理器，显示直观，人机互动友好，操作简便；运算速度快，数据库巨量存储，数据自动修正，并提供数据折线报表；

2.机身使用优质铸铁一次浇铸成型，配合以汽车烤漆处理工艺，外形圆润美观；

3.HBS-3000AT,HBS-3000AET配置自动转塔功能,压头和镜头之间自动切换，使用更加方便;

4.便捷控制系统，可自动进行全硬度标尺的单位转换;

5.电子闭环控制施加试验力，完全实现了加荷、保荷、卸荷的自动化运行；

6. 配备高清光学双物镜，可测量从31.25-3000kgf标准试验力下的不同直径的压痕；

7. 可设置硬度值，当测试值超过设定范围时，发出报警音；

8. 具有软件硬度值修正功能，可以在一定范围内直接对硬度值进行修正；

9. 具有数据库功能，对试验数据自动进行分组保存，每组可保存10个数据，可以保存2000个以上数据；

10. 具有硬度值曲线显示功能，直观显示硬度值的变化；

11. 配置无线蓝牙打印机，并可通过RS232、USB接口输出数据；

12.可选配CCD图像处理系统或视频测量装置；

13. 精度符合GB/T231.2-2018、ISO6506-2和美国ASTM E10标准。

Product Features:

● HBS-3000T,HBS-3000ET,HBS-3000AT,HBS-3000AET Touch-Screen digital Brinell hardness tester adopt 8 -inch touch screen and high-speed ARM processor, Visual display, friendly man-machine interaction, easy operation, Fast operation speed, extensive database storage, data automatic correction, and provide data broken line report；

● The machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful；

● HBS-3000AT,HBS-3000AET Equipped with automatic turret function, automatic switching between the indenter and the lens, more convenient to use;

● Convenient control system can automatically convert the unit of full hardness scale；

● The electronic closed-loop control exerts the test force, fully realizes the automatic operation of loading,holding and unloading of the test force;

● The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued；

● With the function of software hardness value correction, the hardness value can be directly corrected within a certain range；

● With the database function, the test data can be saved automatically in groups, each group can save 10 data, total can save more than 2000 data;

● With the hardness value curve display function, intuitive display the changes of hardness value;

● Equipped with HD optical two lens, it can measure indentation of different diameters from 31.25 to 3000kgf standard test force;

●The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued；

● With the function of software hardness value correction, the hardness value can be directly corrected within a certain range；

● With the database function, the test data can be saved automatically in groups, each group can save 10 data, total can save more than 2000 data;

● With the hardness value curve display function, intuitive display the changes of hardness value;

● Equipped with wireless blue-tooth printer, the data can be output through RS232 and USB interface port；

● Equipped with the independent small floodlight, convenient for user operation in the bad light；

● Accuracy is in line with GB/T230.2, ISO6508-2 and American ASTM E18 standard.
